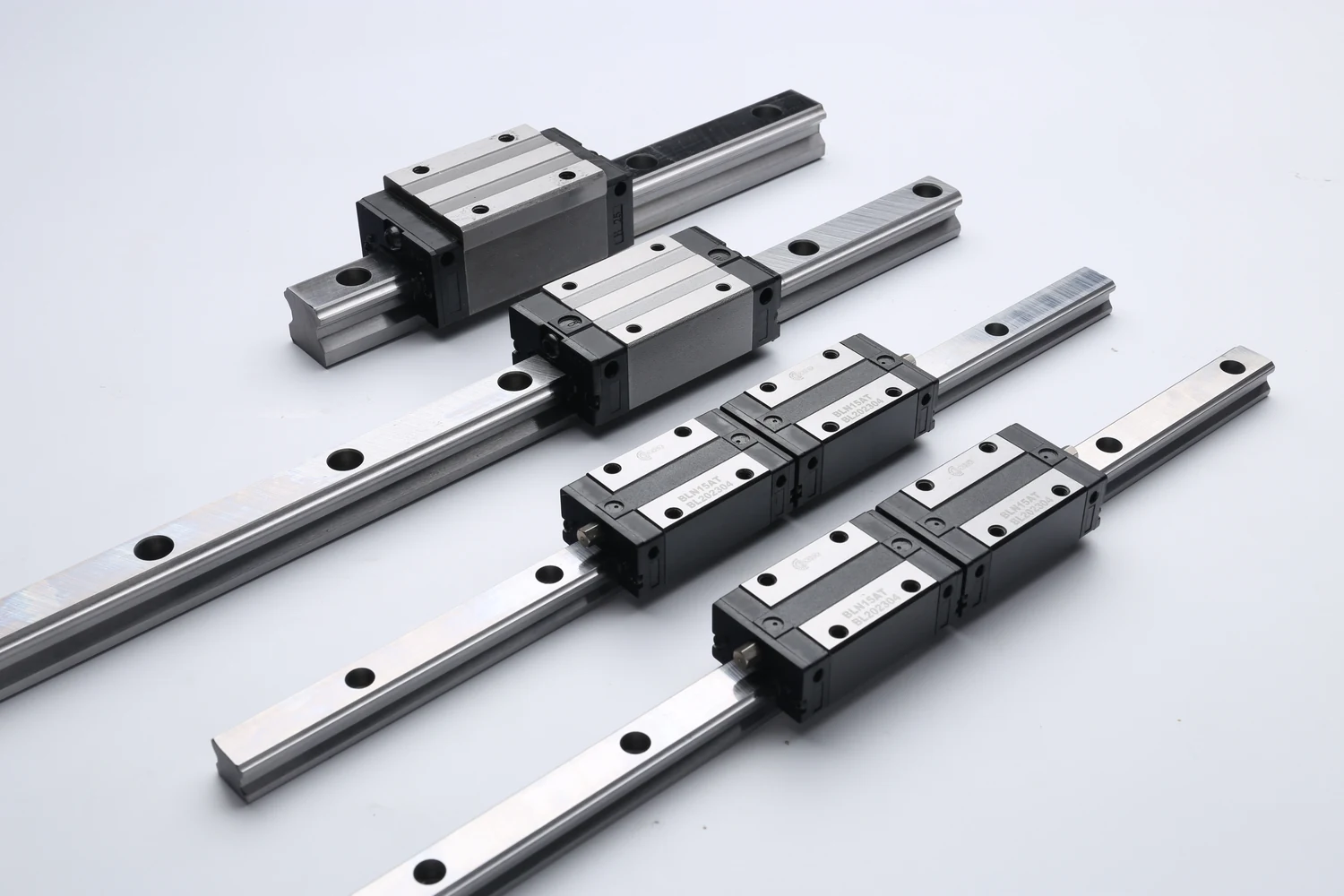

BO heavy-load linear guide rails and blocks
  • Series rangeBO heavy load / BL low profile / BM miniature
  • Rail lengthsStandard and joined lengths reviewed by application
  • Block optionsSquare, flange, narrow and wide forms by series
  • Selection reviewConfirm load, envelope, accuracy and mounting pattern

Linear guide rails.

Compare BO heavy-load, BL low-profile and BM miniature guide families. Each series separates its N square or narrow block from its F flange or wide block.

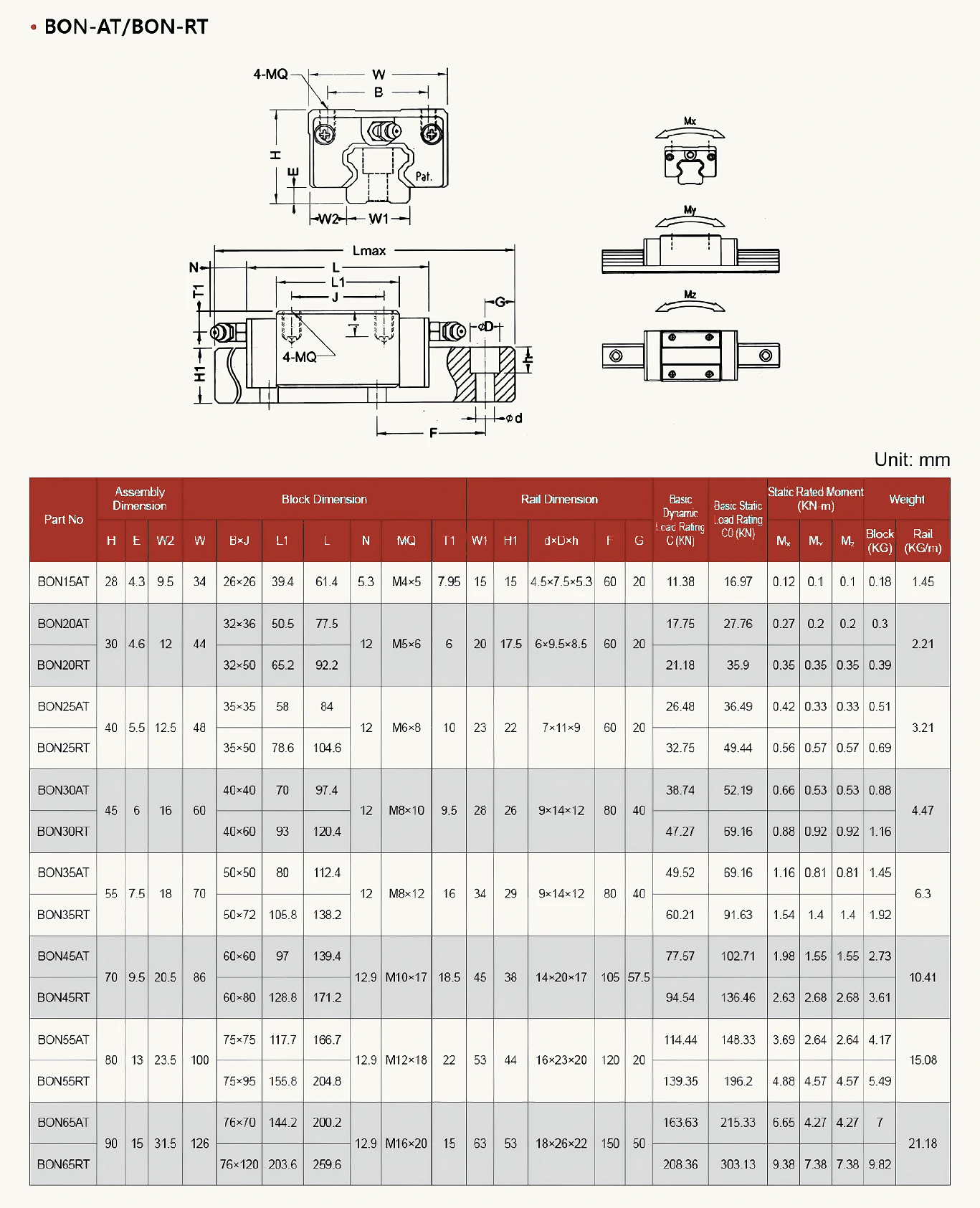

BO-N square-block drawing and complete parameter table

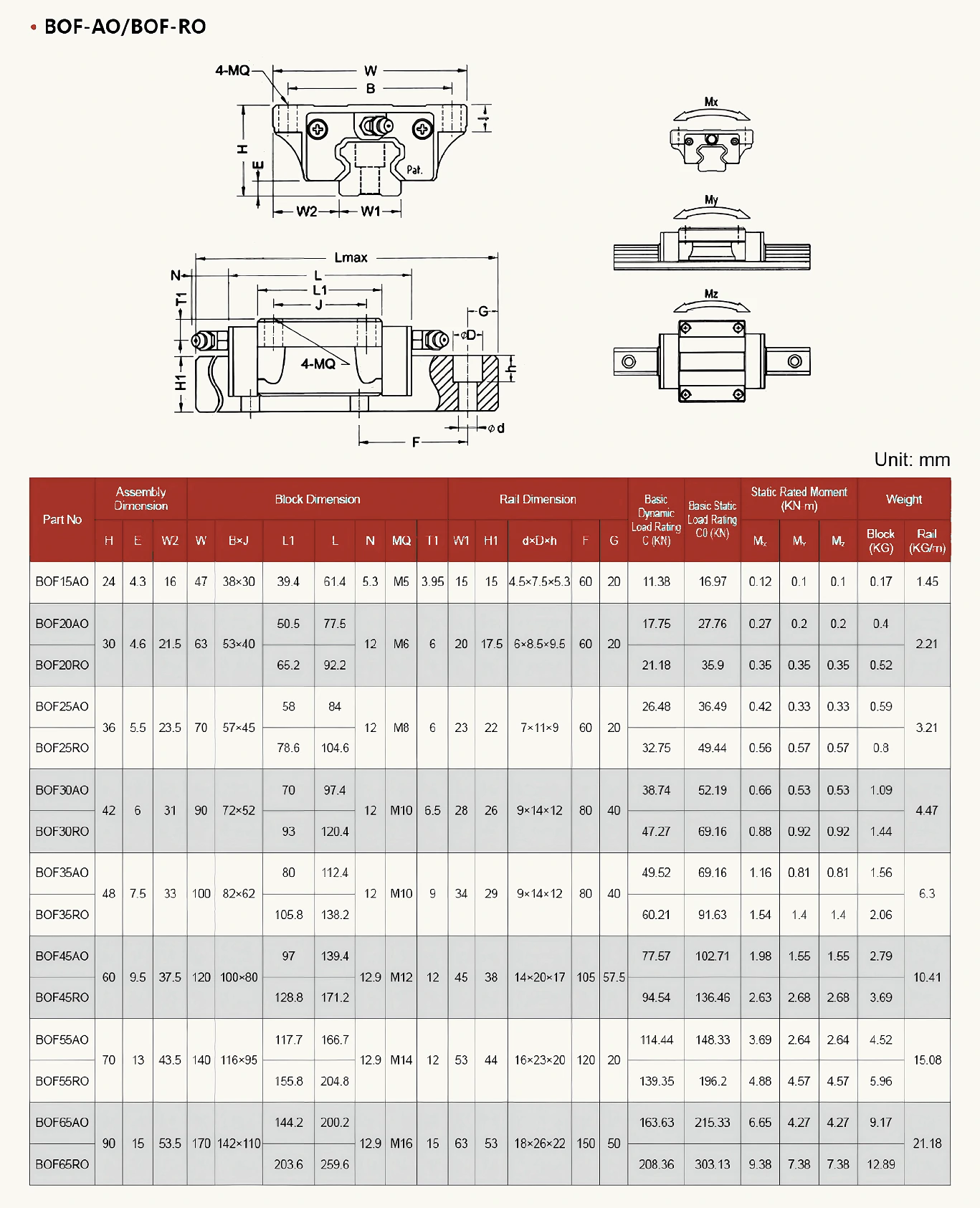

BO-F flange-block drawing and complete parameter table

Selected technical reference

Start an RFQ

Send a drawing or a clear part reference.

Include quantity, material, finish and any critical requirements. We will review the manufacturing route before quoting.
