Live rail alignment check with a dial indicator

Practical inspection steps for custom and repeat machined parts.

Drawing notes, critical features and release requirements become measurable checkpoints before shipment. The inspection method follows the part function and batch requirements.

Drawing: Critical notes and datum features
Part: Dimensions, threads and visible finish
Release: Quantity, protection and shipment photos

Requirement review

Review drawing notes, material, finish, quantity and part function before quoting.

In-process checks

Check key features during machining, especially hole patterns, fit faces and repeat dimensions.

Final inspection

Confirm key dimensions, appearance, matching parts and packaging before shipment.

Photo confirmation

Provide product or packaging photos when required for remote buyer confidence.

Inspection evidence

Measurement is part of the release check.

These shop-floor records show the actual tools and checkpoints used around machining, assembly and final review. Drawing-specific inspection points are agreed with the order requirements.

Linear assembly measured during inspection — Assembly measurementGuide alignment, mounting-interface position and repeat movement are checked before the assembly is released for packing.

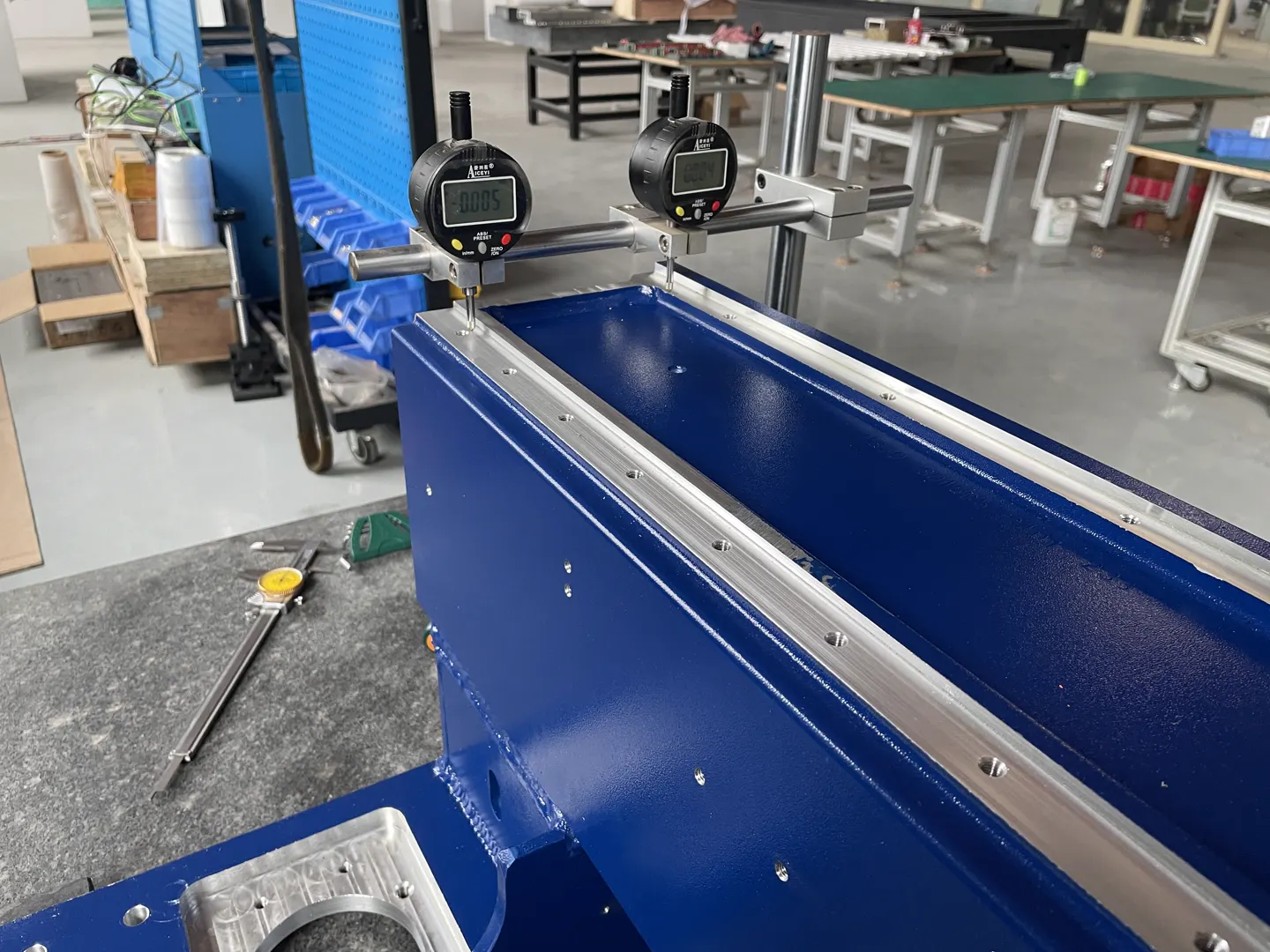

Dial indicators used for an inspection check — Gauge-based checkDial indicators support comparative checks of alignment and local runout where the drawing identifies critical geometry.

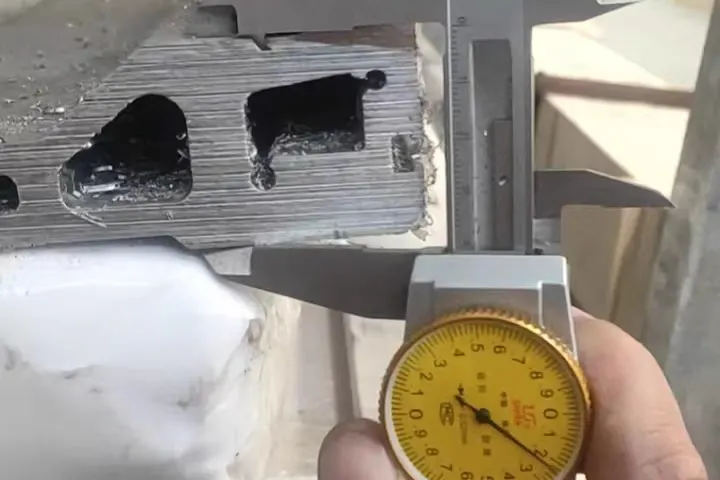

Profile checkCaliper checks confirm opening size, wall thickness and machined edges against drawing-defined dimensions.

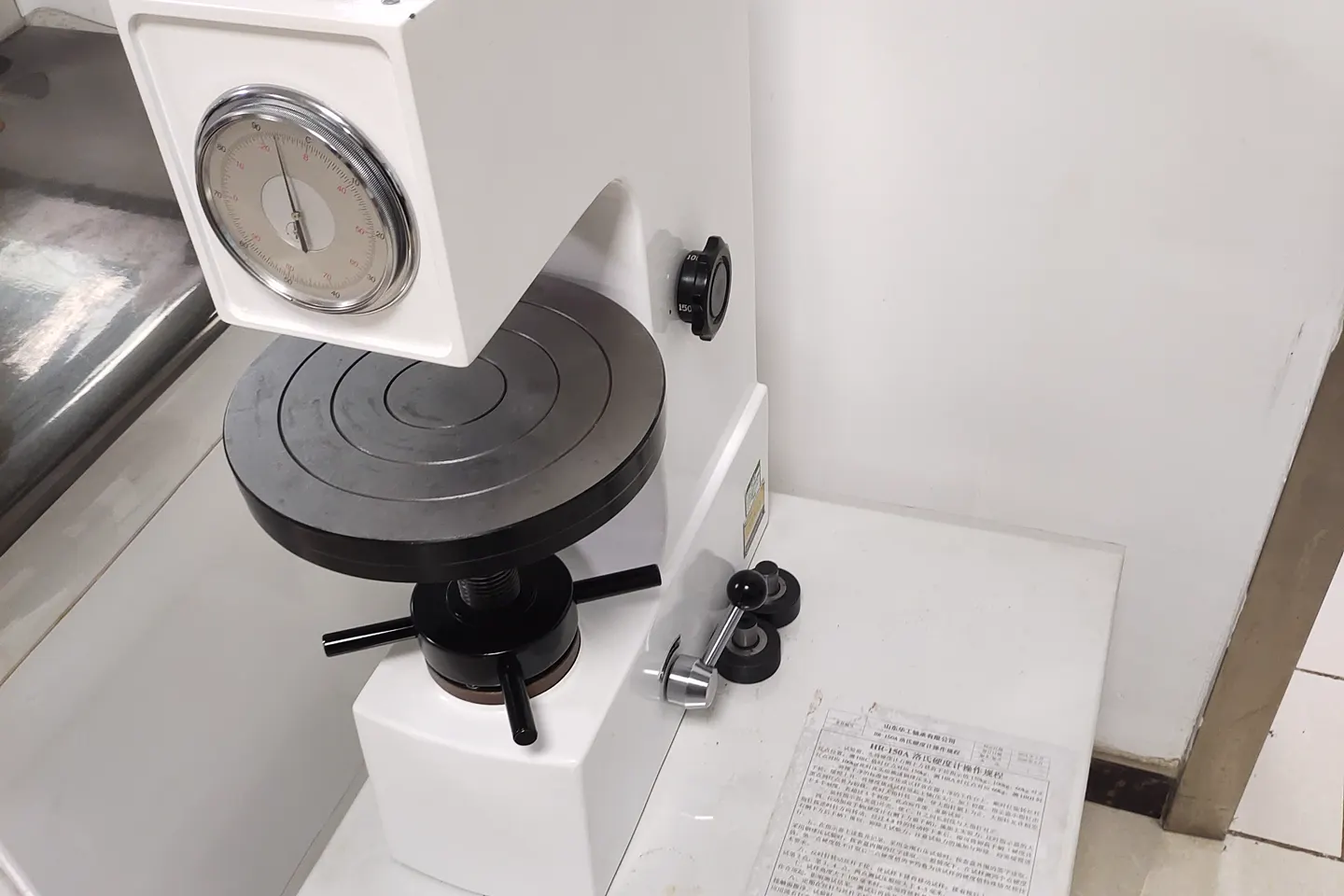

Hardness test station used for material verification — Material verificationWhen specified, hardness testing supports review of supplied material or the required material condition before release.
