Representative project records

What a completed machining project can look like.

Anonymous reference records show the type of part, batch size, process focus and typical production window. Client names and drawing identifiers are withheld.

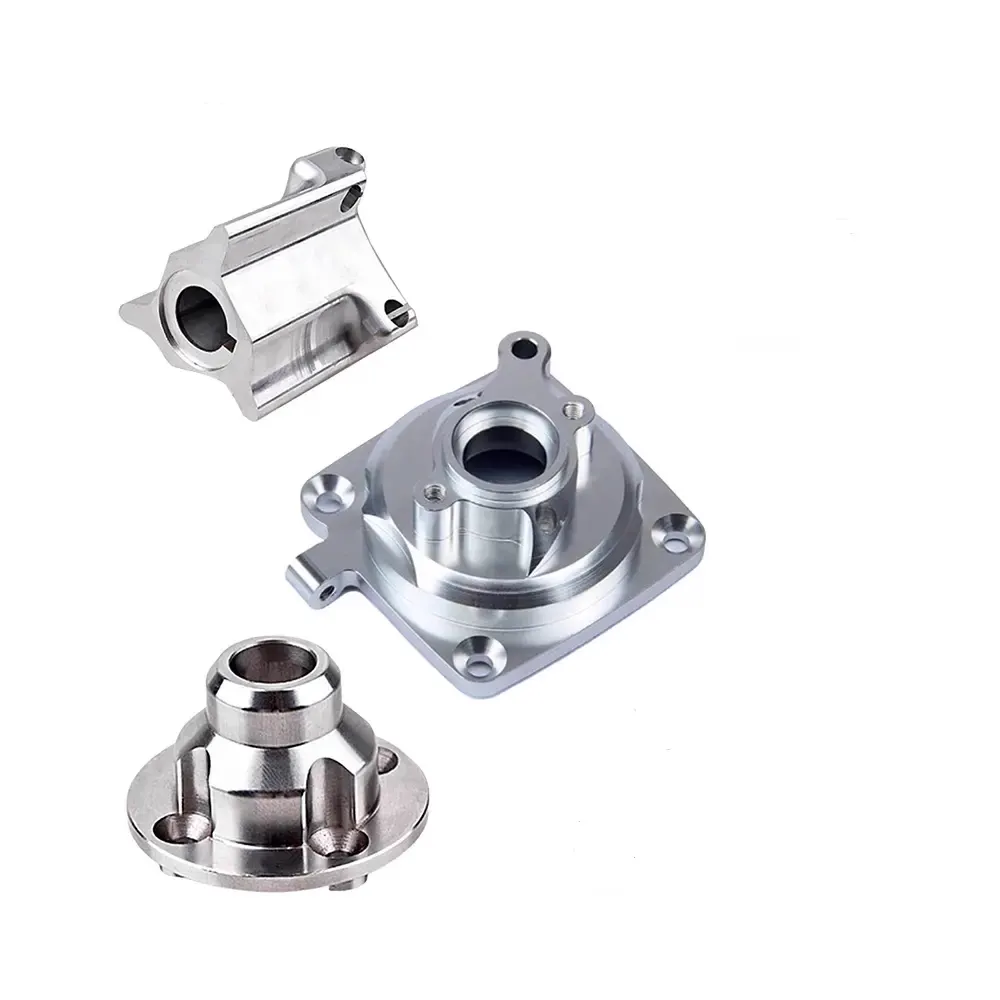

Machined fixture housing and flange components

Project record 01

Fixture housing and interface components

Small structural housings and flanged interfaces produced from a supplied assembly drawing for an equipment build.

Material
6061-T6 aluminum
Quantity
48 pcs
Production window
12 calendar days
Delivery
Foam-separated cartons

Machining focus: Datum faces, tapped holes, bored interfaces and deburring before final packing.

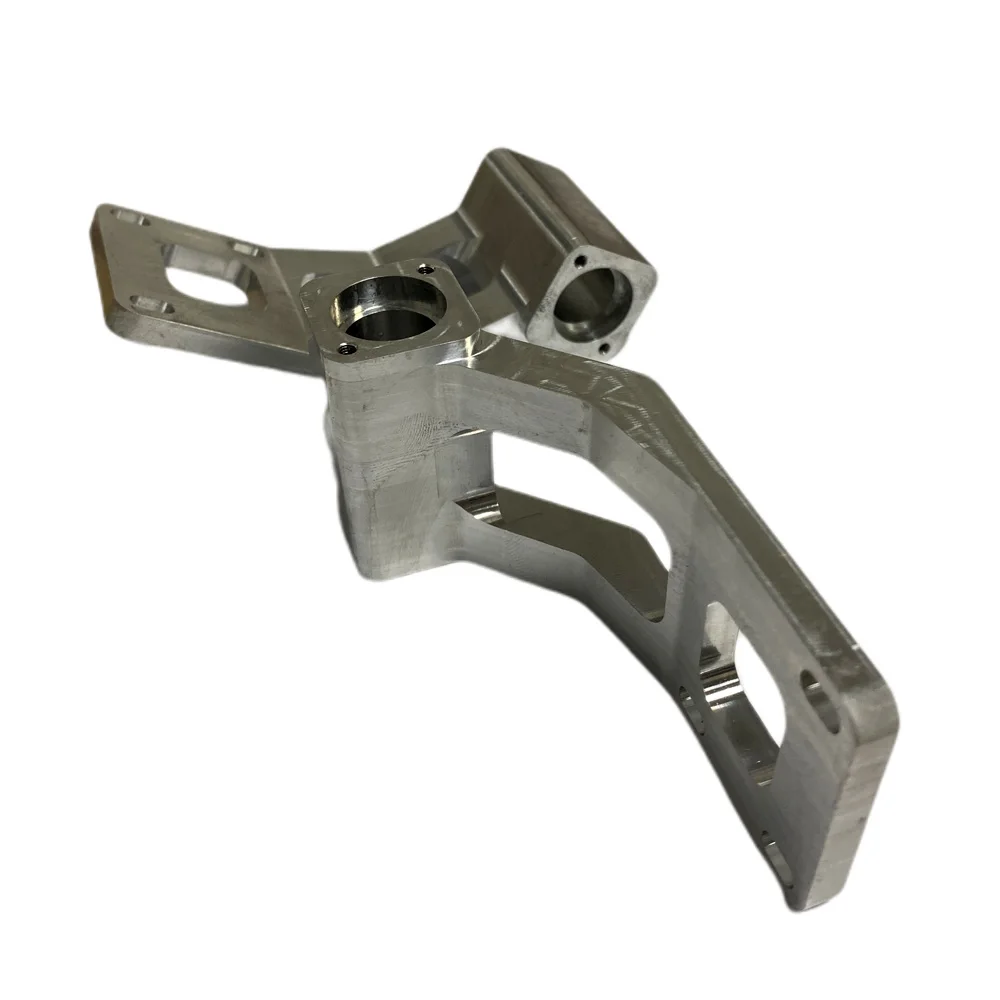

Machined formed equipment arm bracket

Project record 02

Formed arm and bearing-interface bracket

A shaped equipment bracket requiring dimensional review across the central bore, fastening faces and paired arm interfaces.

Material
Aluminum alloy
Quantity
16 pcs
Production window
10 calendar days
Delivery
Individually protected

Machining focus: Multi-face CNC milling, bore alignment, threaded features and visual edge treatment.

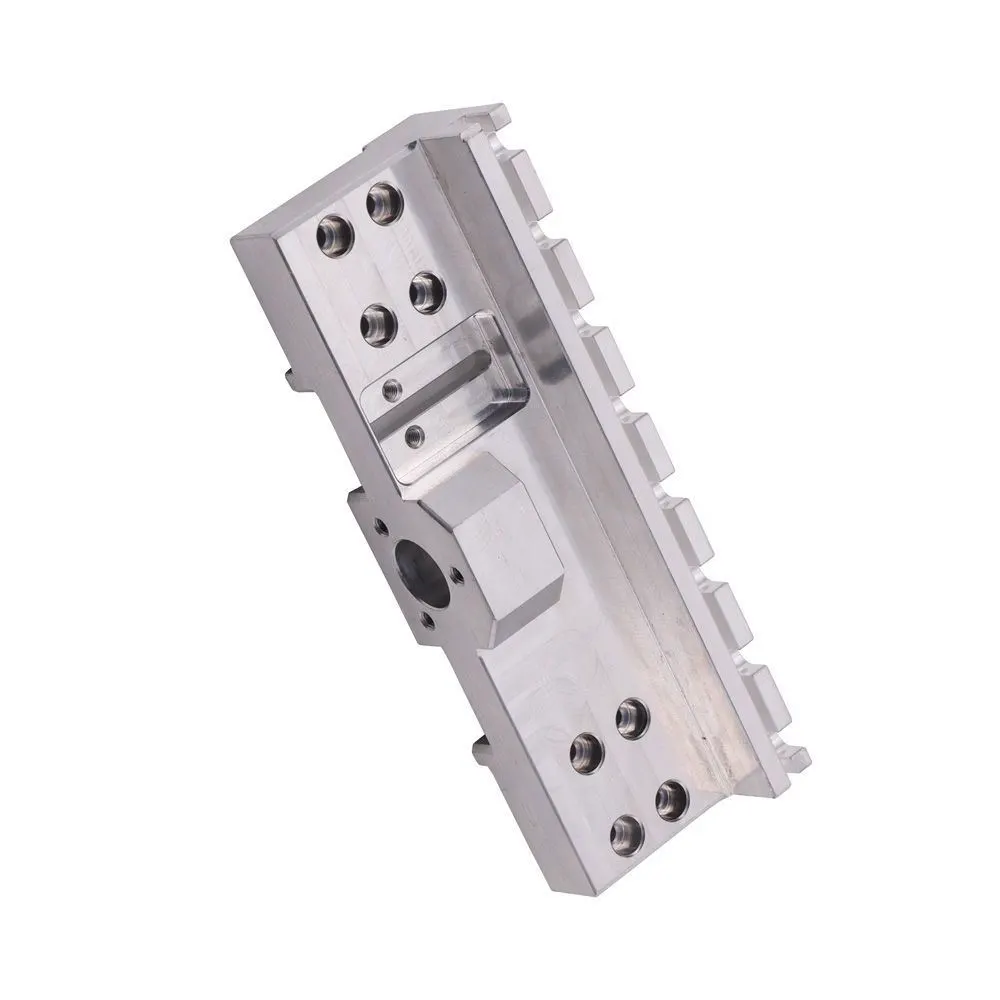

Machined linear equipment interface body

Project record 03

Linear-equipment interface body

Repeat parts for a motion assembly, manufactured around mounting patterns, locating faces and a central interface bore.

Material
6061-T6 aluminum
Quantity
80 pcs
Production window
14 calendar days
Delivery
Labeled batch trays

Machining focus: Repeat hole position, counterbores, interface flatness and batch-to-batch consistency.

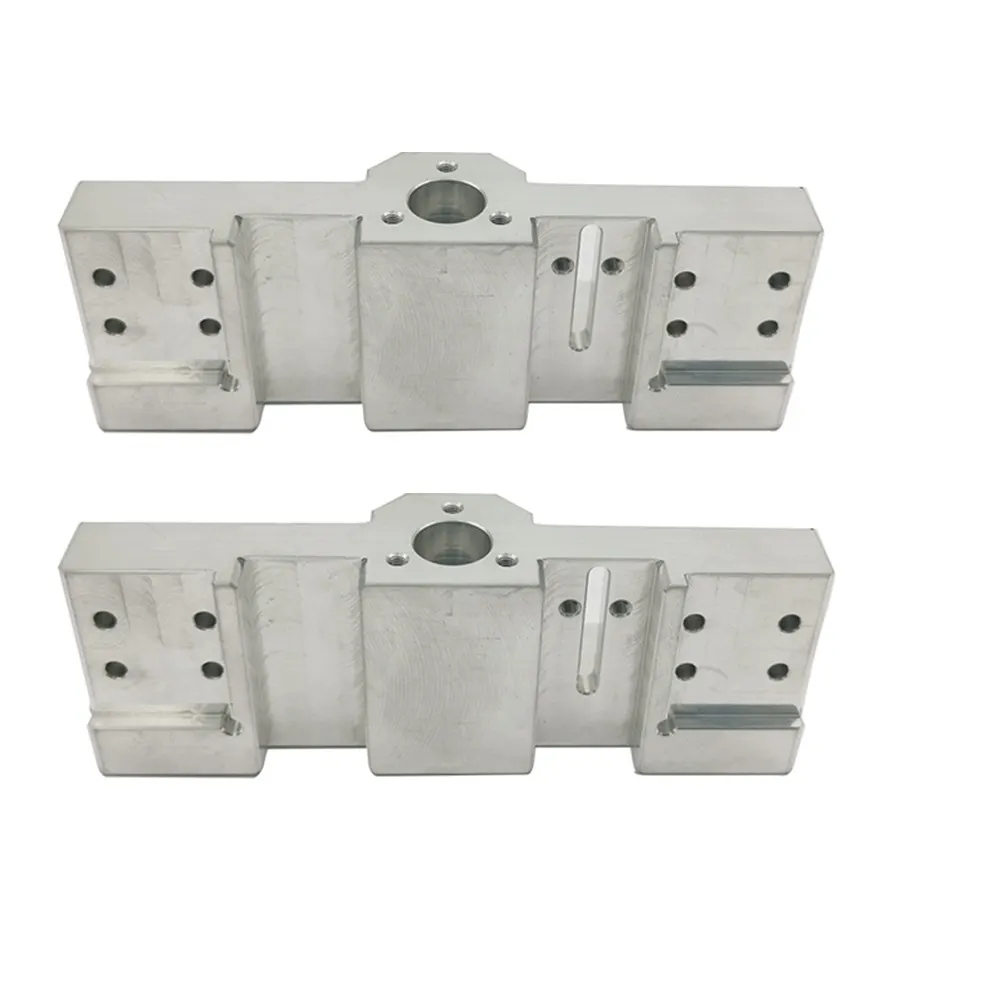

Matched dual mounting bodies

Project record 04

Matched mounting-body pair

Paired components for an equipment subassembly where mirrored features and the shared center interface needed to align.

Material
Aluminum alloy
Quantity
24 pairs
Production window
11 calendar days
Delivery
Pair-matched packing

Machining focus: Pair matching, mounting-hole repeatability, thread protection and final visual inspection.
